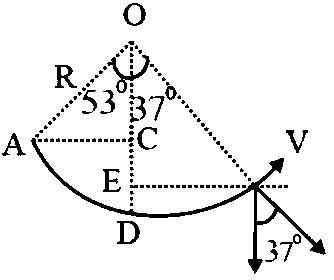

A section of fixed smooth circular track of radius $R$ in vertical plane is shown in the figure. A block is released from position $A$ and leaves the track at $B$ . The radius of curvature of its trajectory when it just leaves the track at $B$ is-

Question

TestHub · Accepted Answer

In figure O C = R cos ⁡ 53 ° = 3 R 5 ; O E = R cos ⁡ 37 ° = 4 R 5 So C E = R 5 From A to B , 1 2 m v 2 = m g R 5 [Energy conservation] v = 2 g R 5 Let radius of curvature at B is r g cos ⁡ 37 ° = v 2 r r = v 2 g cos ⁡ 37 ° = 2 g R 5 × 10 × 4 / 5 = R 2

Physics - Circular Motion Question with Solution | TestHub
