A zener diode is to be used as a voltage regulator. Identify the correct set up -

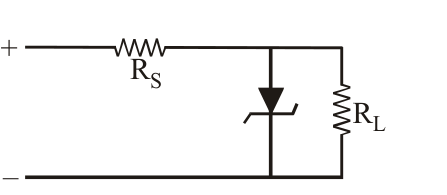

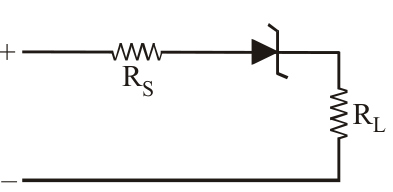

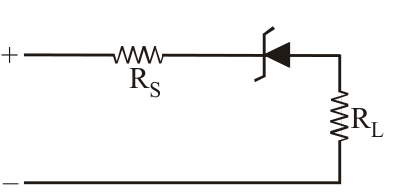

Options:
Answer:
A
Solution:
A regulating Zener must be reverse biased across the load.
A series resistor limits its current.
Only A has the correct orientation and arrangement.
Stream:JEESubject:PhysicsTopic:SemiconductorsSubtopic:PN junction
⏱ 2mℹ️ Source: QB
