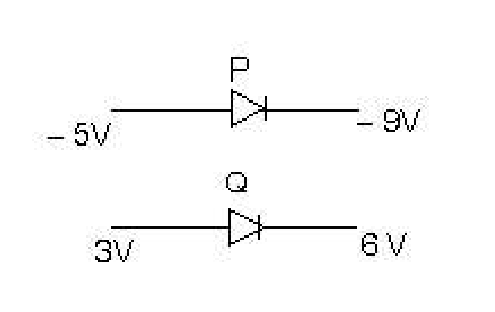

Terminal potentials of two diodes P and Q are as shown in figure. Then which of the following is correct

Circuit diagram

Answer:

Solution:

For P:

$V_{p} - V_{n} = - 5 - (- 9) = 4 V > 0$

For Q:

$V_{p} - V_{n} = 3 - 6 = - 3 V < 0$

P is forward biased and Q reverse biased.

Stream:JEESubject:PhysicsTopic:SemiconductorsSubtopic:PN junction
