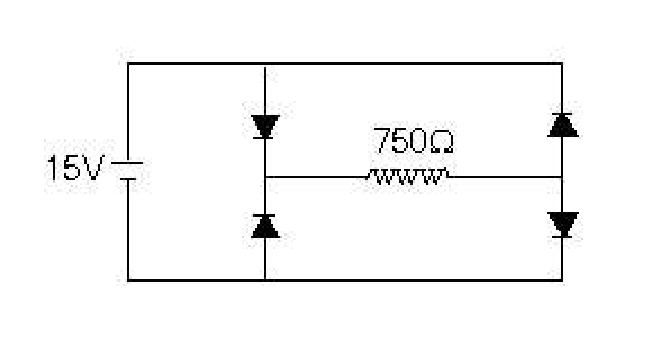

Four silicon diodes are connected as shown in the fig. Assuming the diodes to be ideal. Find the current through the resistor ‘ R ’.

Circuit diagram

Answer:

Solution:

The forward-biased pair provides a conducting path through the resistor.

The other two ideal diodes are reverse biased.

$I = \frac{15}{750} = 0.02 A$

Stream:JEESubject:PhysicsTopic:SemiconductorsSubtopic:PN junction
