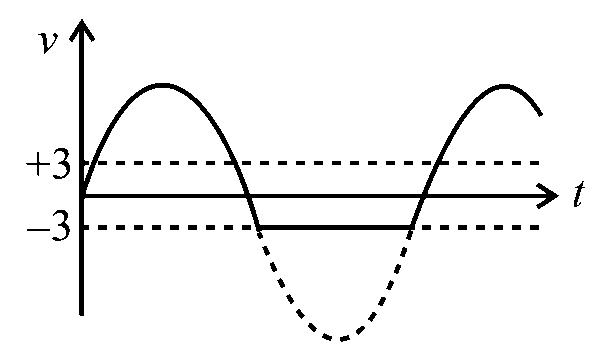

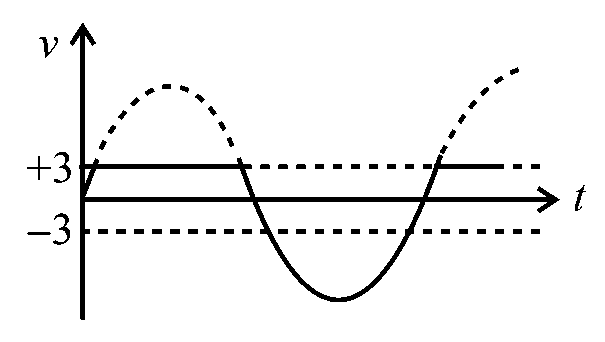

Choose the correct waveform that can represent the voltage acrossof the following circuit, assuming the diode is ideal one:
Options:
Answer:
A
Solution:
Current will flow from the diode when diode is in forward biased.
Thus and will be 'zero', when diode is reverse biased.
Stream:JEESubject:PhysicsTopic:SemiconductorsSubtopic:PN junction
