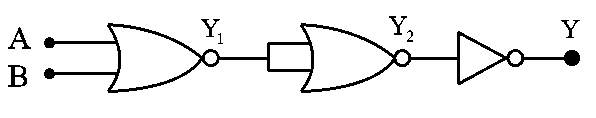

The given electrical network is equivalent to :

Answer:

Solution:

$Y_{1} = \bar{A + B}$

$Y_{2} = \bar{Y_{1} + Y_{1}} = \bar{Y_{1}} = A + B$

$Y = \bar{Y_{2}} = \bar{A + B}$ i.e., NOR gate
