PhysicsSemiconductorsLogic gatesEasy2 minPYQ_2020

PhysicsEasysingle choice

An AND gate is followed by a NOT gate. With two inputs $A$ and $B$ , the boolean expression for the output $Y$ will be

Answer:

Solution:

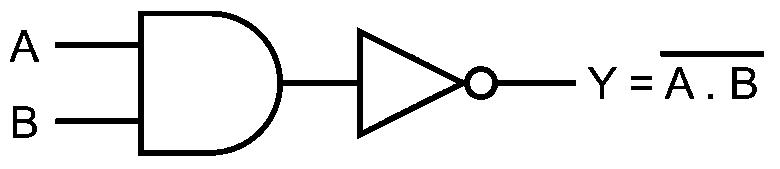

On the basis of boolean algebra AND gate is followed by NOT gate become output of $Y = A . B$

Stream:NTA_ABHYAS_NEETSubject:PhysicsTopic:SemiconductorsSubtopic:Logic gates

⏱ 2mℹ️ Source: PYQ_2020
