PhysicsSemiconductorsLogic gatesEasy2 minPYQ_2020

PhysicsEasysingle choice

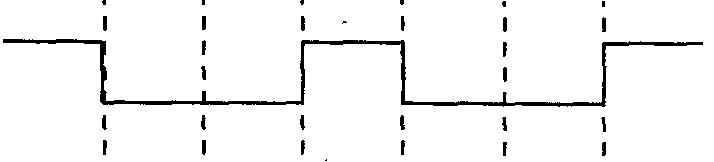

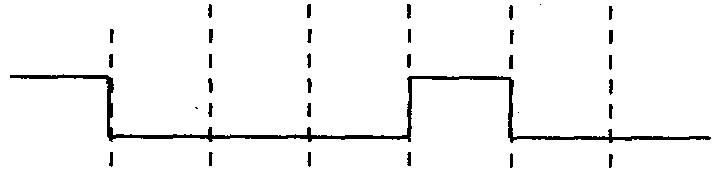

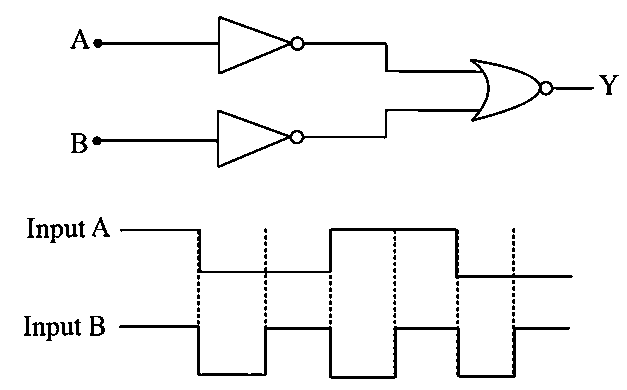

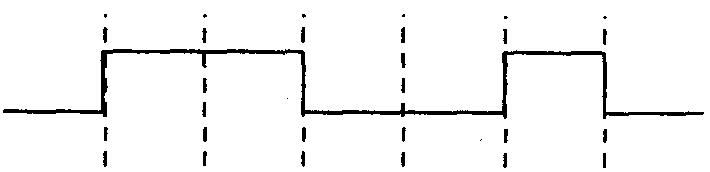

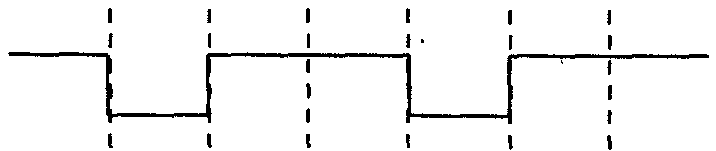

The logic circuit shown below has the input waveforms $A$ and $B$ as shown. Pick out the correct output waveform.

Answer:

Solution:

The output will be of AND gate.

The output will be high only when both the inputs are high.

Stream:NTA_ABHYAS_NEETSubject:PhysicsTopic:SemiconductorsSubtopic:Logic gates

⏱ 2mℹ️ Source: PYQ_2020
