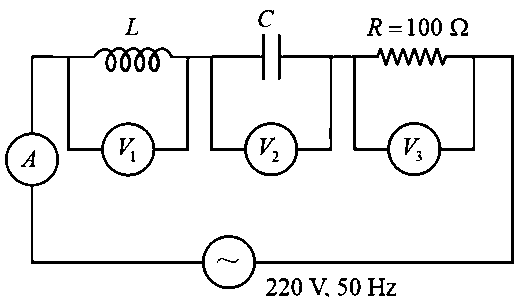

In the given circuit the reading of voltmeters $V_{1}$ and $V_{2}$ are $300 volt$ each. The reading of the voltmeter $V_{3}$ and ammeter $A$ are respectively

Options:

Answer:

Solution:

$V = \sqrt{V_{R}^{2} + {(V_{L} - V_{C})}^{2}}$

Since, $V_{L} = V_{C}$ i.e. $V_{1} = V_{2}$

$∴ V = V_{R} = 220 V$

$I = \frac{V}{R} = \frac{220}{100} = 2.2 A$
