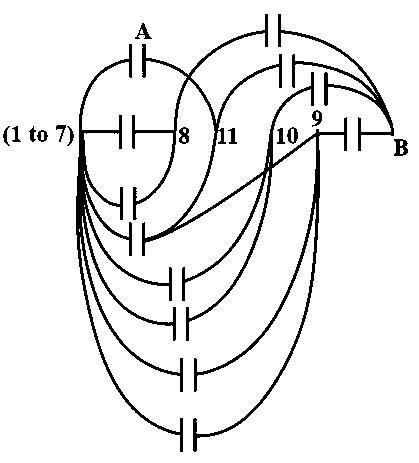

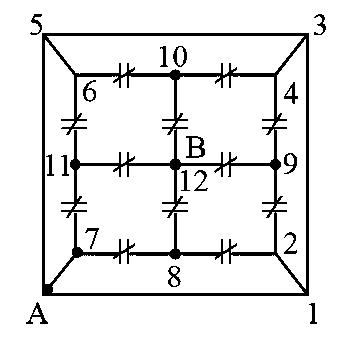

Mark equipotential points and redraw the circuit in order to identify series and parallel combinations.

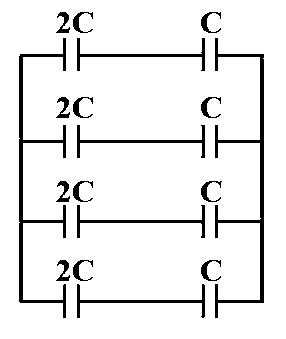

$C_{\mathrm{e}\mathrm{q}}.=4\mathrm{ }\times \mathrm{ }\frac{2C\times C}{2C+C}=\frac{4\times \mathrm{ }2C}{3}=\frac{8C}{3}$
