PhysicsW.E.P.Vertical circular motionMedium2 minQB

PhysicsMediuminteger

Passage / Comprehension

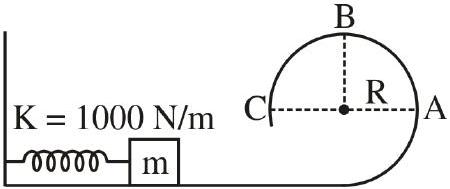

A 0.5 kg block is placed near a spring of stiffness 1000 N/m, initially compressed and then released. The spring is not attached to the block. The circular track radius is R = 10 cm. Take $g = 10 m/ s^{2}$ . See the common diagram.

Source diagram for Phase II Advanced shared passage group 3

If spring is compressed by minimum compression then the normal (in N) force acting on block at A is 3x (in N). Find x .

Answer:

Solution:

At minimum compression, the speed at the top satisfies

$v_{B}^{2} = g R$

A is a height R below the top, hence

$v_{A}^{2} = v_{B}^{2} + 2 g R = 3 g R$

At A, gravity has no radial component.

$N_{A} = \frac{m v _{A}^{2}}{R} = 3 m g = 15 N$

$3 x = 15 \Rightarrow x = 5$

Stream:JEESubject:PhysicsTopic:W.E.P.Subtopic:Vertical circular motion
