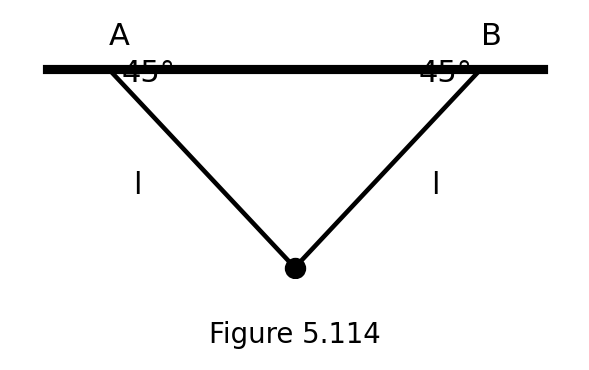

Two light strings, each of length l , are fixed at points A and B on a fixed horizontal rod. A small bob is tied to both and in equilibrium the strings make 4 5 ∘ with the rod (Figure 5.114). If the bob is slightly displaced normal to the plane of the strings and released, the period of small oscillation is:

The bob swings about the rod. Its distance from the rod is l sin 4 5 ∘ = l / 2 , the effective length. T = 2 π l / ( 2 g ) .

Start Free Mock LoginAlready registered? Login here

Physics - SHM Question with Solution | TestHub

PhysicsSHMOscillations and SHMMedium2 min

PhysicsMediumsingle choice

Two light strings, each of length $l$ , are fixed at points $A$ and $B$ on a fixed horizontal rod. A small bob is tied to both and in equilibrium the strings make $4 5^{\circ}$ with the rod (Figure 5.114). If the bob is slightly displaced normal to the plane of the strings and released, the period of small oscillation is:

Options:

Answer:

Solution:

The bob swings about the rod. Its distance from the rod is $l sin 4 5^{\circ} = l / 2$ , the effective length. $T = 2 π l / (2 g)$ .

Subject:PhysicsTopic:SHMSubtopic:Oscillations and SHM
