Passage / Comprehension

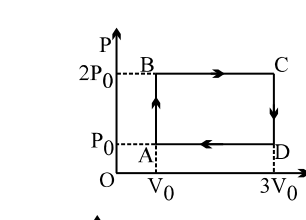

The figure shows P-V diagram of a thermodynamic cycle
Identify the diagram which correctly represents the heat inflow and outflow of the system
Options:
Answer:
B
Solution:
A→B (isochoric pressure rise) and B→C (isobaric expansion): heat flows IN . C→D (isochoric pressure drop) and D→A (isobaric compression): heat flows OUT .
