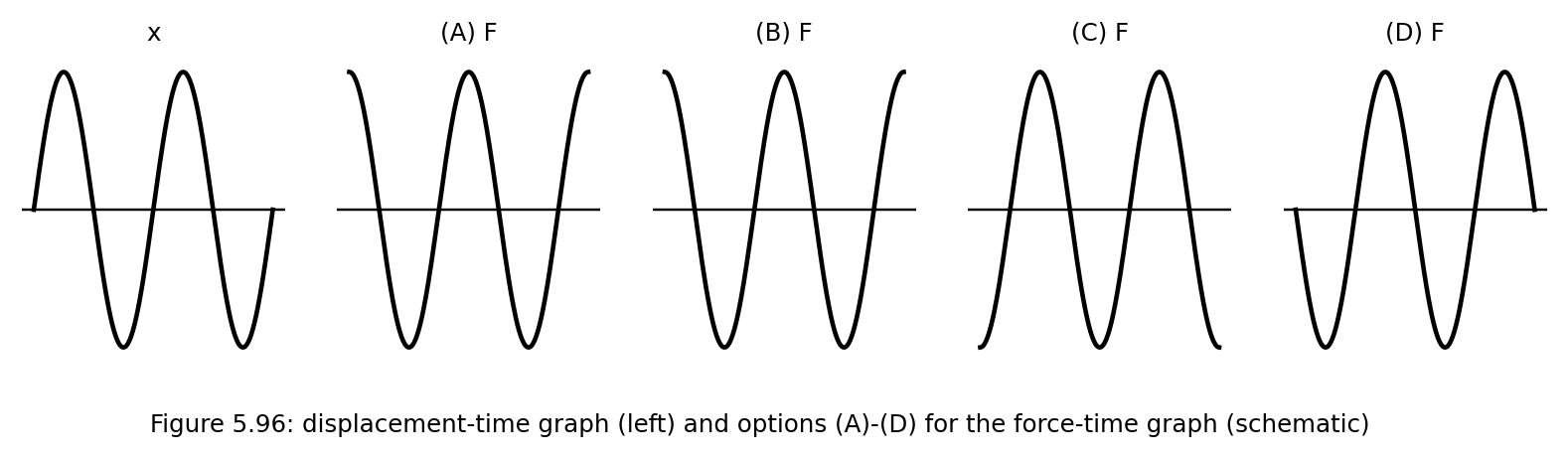

The displacement-time graph of a particle executing SHM is as shown in Figure 5.96. The corresponding force-time graph of the particle can be (options (A) to (D) in the figure):
Options:
Answer:
D
Solution:
For SHM . The force graph is the displacement graph inverted, i.e. the mirror image about the time axis. This is option (D).
Subject:PhysicsTopic:SHMSubtopic:Oscillations and SHM
