PhysicsMediumsingle choice

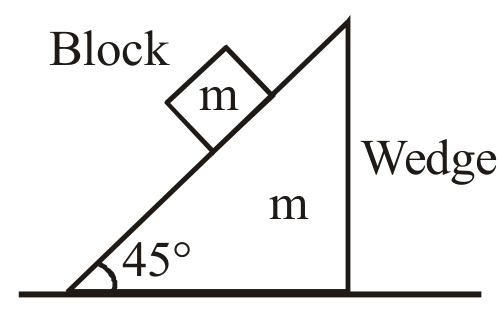

In the system shown block is released from rest on the inclined surface of the wedge. The acceleration of the wedge will be (assume friction to be absent)

Options:

Answer:

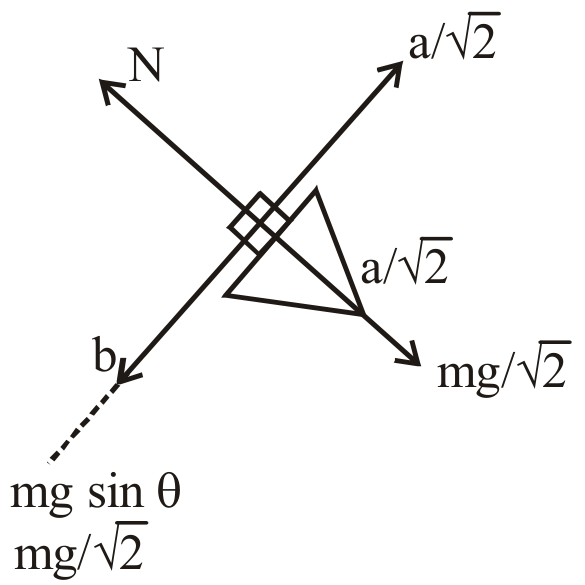

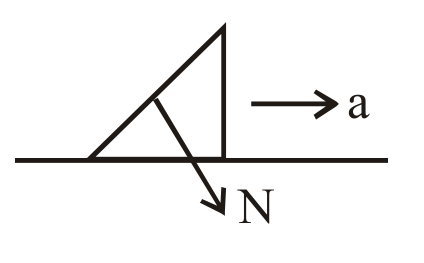

Solution:

$\frac{mg}{2} - N = m \frac{a}{2}$

$\frac{mg}{2} - ma 2 = \frac{mg}{2}$

$\frac{mg}{2} = ma (\frac{2 + 1}{2})$

$a = \frac{g}{3}$

Stream:JEESubject:PhysicsTopic:NLM
