Physics - SHM Question with Solution | TestHub

PhysicsSHMCalculation of time periodMedium2 minQB

PhysicsMediuminteger

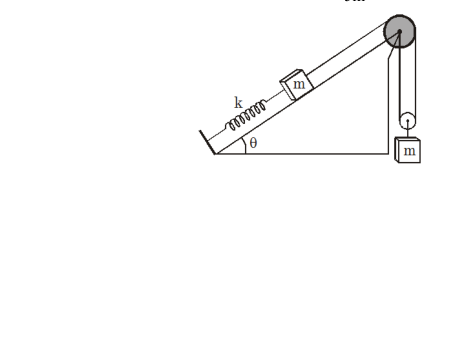

If natural frequency $ω$ of the system shown in figure is $x \frac{k}{5 m}$ , find x.

Answer:

Solution:

If the hanging mass moves x, the mass on the incline moves 2x and its speed is 2v. Energy:

$TE = \frac{1}{2} m v^{2} + \frac{1}{2} m (2 v)^{2} + \frac{1}{2} k (2 x)^{2} = \frac{5}{2} m v^{2} + 2 k x^{2}$ .

$ω = \frac{4 k}{5 m} = 2 \frac{k}{5 m} \Rightarrow x = 2$ . Answer: 2.

Stream:JEESubject:PhysicsTopic:SHMSubtopic:Calculation of time period

⏱ 2mℹ️ Source: QB
