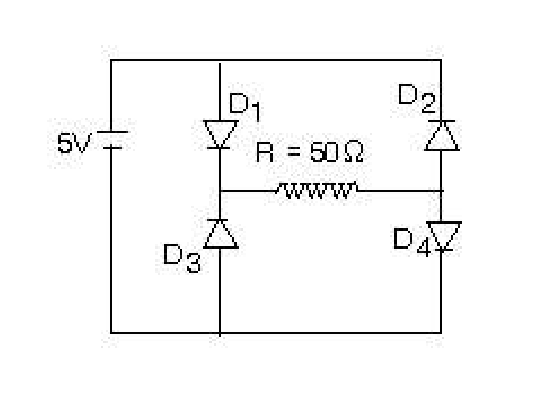

Four silicon diodes are connected as shown in the fig. Assuming the diodes to be ideal. Find the current through the resistor R.

Circuit diagram

Answer:

Solution:

Diodes $D_{1}$ and $D_{4}$ conduct; $D_{2}$ and $D_{3}$ block.

$I = \frac{5}{50} = 0.1 A$

Stream:JEESubject:PhysicsTopic:SemiconductorsSubtopic:PN junction
