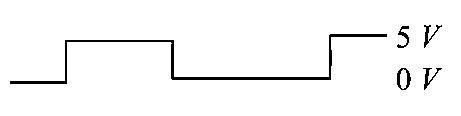

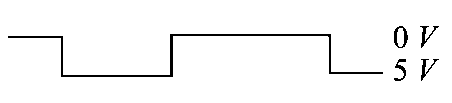

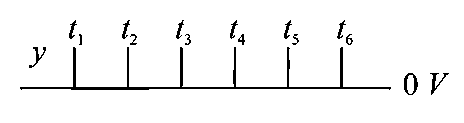

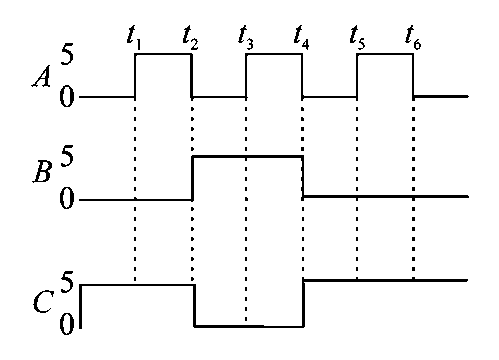

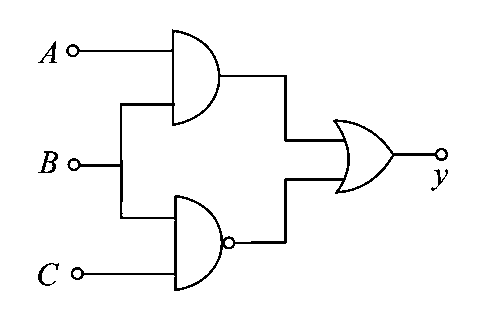

For the given circuit, the input digital signals are applied at the terminals $A, B$ and $C$ . What would be the output at the terminal $y$ ?

NEET 2021

Answer:

Solution:

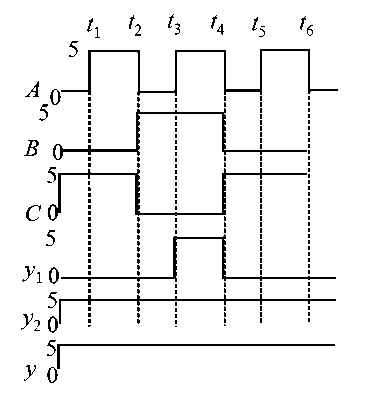

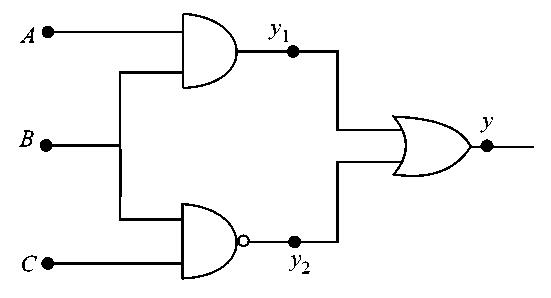

Truth table of AND gate for output $y_{1}$

Truth table of NAND gate for output $1$ $y_{2}$

Truth table of $OR$ gate for output $y$
