The combination of $NAND$ gates shown here in the figure give output $C$ and $C^{'}$ . $C$ and $C^{'}$ are equivalent to

Answer:

Solution:

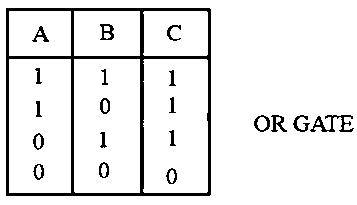

$\overset{}{C} = \bar{\bar{A} \cdot \bar{B}}$

$= A + B$

Thus its OR gate

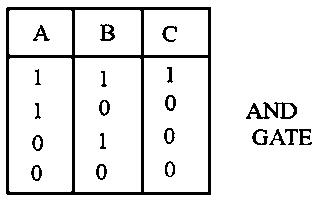

$C^{'} = \bar{\bar{A \cdot B}} = A \cdot B$

Thus its AND gate
