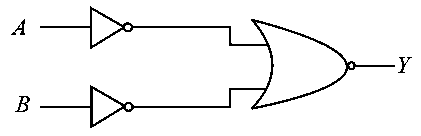

For the logic circuit shown, the truth table is:
NEET 2020 (Phase 1)

Answer:

Solution:

$Y = \bar{\bar{A} + \bar{B}} = \bar{\bar{A}} . \bar{\bar{B}} = A . B = AND$

$\begin{matrix} A & B & Y \\ 0 & 0 & 0 \\ 0 & 1 & 0 \\ 1 & 0 & 0 \\ 1 & 1 & 1 \end{matrix}$
