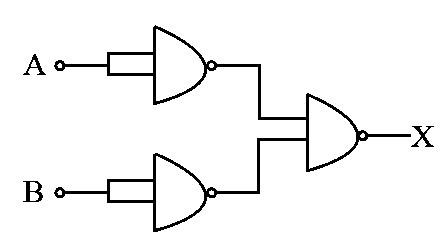

The combination of gates shown below yields

Answer:

Solution:

The final boolean expression is,

$X = \bar{(\bar{A} . \bar{B})} = \bar{A} + \bar{B} = A + B \Rightarrow$ OR gate

Stream:NTA_ABHYAS_NEETSubject:PhysicsTopic:SemiconductorsSubtopic:Logic gates
