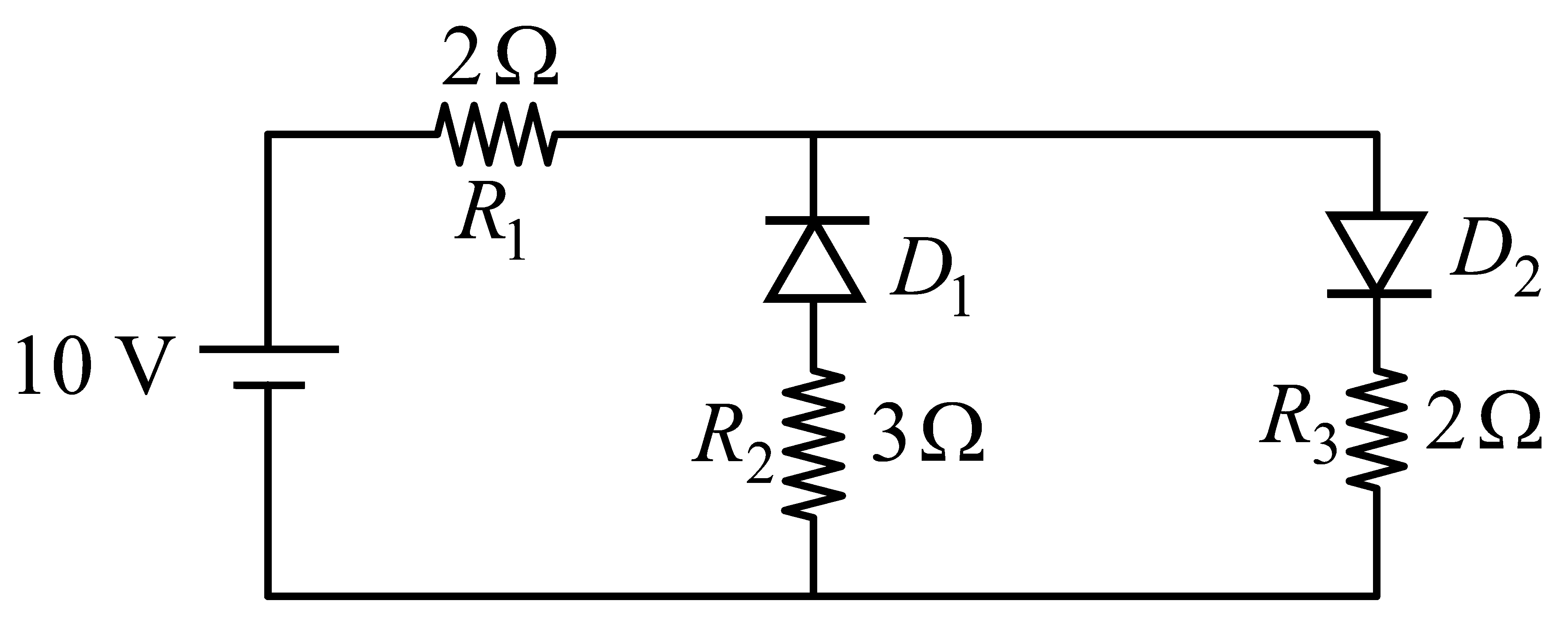

The given circuit has two ideal diodes connected as shown in the figure below. The current flowing through the resistance $R_{1}$ will be

NEET 2016 (Phase 2)

Answer:

Solution:

$D_{1}$ is in reverse bias.

$D_{2}$ is in forward bias.

$I = \frac{10 V}{(2 + 2) Ω} = 2.5 A$ .
