PhysicsSemiconductorsPN junctionEasy2 minPYQ_2014

PhysicsEasysingle choice

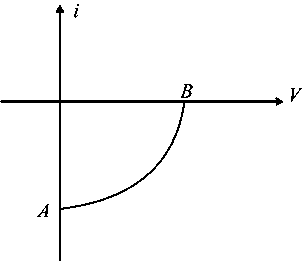

The given graph represents $V$ - $I$ characteristic for a semiconductor device.

Which of the following statement is correct?NEET 2014

Options:

Answer:

Solution:

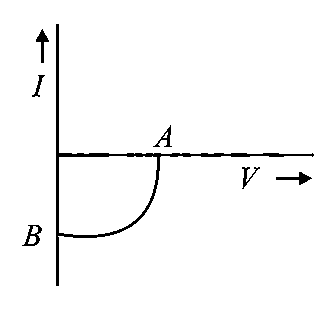

The given graph is $V$ - $I$ characteristic curve for a solar cell, where $A$ i.e point where $V = 0$ represents open circuit voltage of solar cell and $B$ i.e. the point where $i = 0$ represents short circuit current.

Stream:NEETSubject:PhysicsTopic:SemiconductorsSubtopic:PN junction

⏱ 2mℹ️ Source: PYQ_2014
