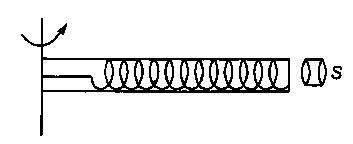

A rod of lengthl⁡ =2 mis maintained to rotate with a constant angular velocityω=1 rad s-1about a vertical axis passing through one end (diagram). There is a spring constantk=1 N m-1which just encloses rod inside it in natural length. One end of the spring is attached to the axis of rotation.Sis a sleeve of massm=1 kgwhich can just fit on rod. All surfaces are smooth. With what minimum kinetic energy (in j) sleeve should be projected so that it enters on the rod without jerk and completely compresses the spring.

Answer:
6.00
Solution:

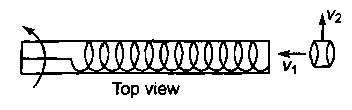

For entering without jerkv2=l⁡ω0=2 m s-1

Using work-energy theorem on the sleeve after entering in the frame of rod



W spring + W centrifugal = Δ K

- 1 2 k l⁡ 2 - 1 2 m ω 2 l⁡ 2 = 0 - 1 2 mv 1 2

⇒            v 1 2 = 8

Now, K = 1 2 m v 1 2 + v 2 2 = 6
