Physics - NLM Question with Solution | TestHub

PhysicsNLMSimple Application of NLMMedium2 minQB

PhysicsMediuminteger

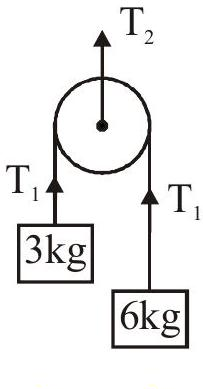

The figure shown below is a system of two masses 3 kg and 6 kg and massless pulley accelerating upwards with $2 m / s^{2}$ . If the value of $T_{2}$ is $\frac{288}{x} N$ , then the value of x is

$m / s^{2}$

$T_{2} \frac{288}{x} N x$

Answer:

Solution:

For the masses: $T_{1} - 30 = 3 a_{1}$ and $T_{1} - 60 = 6 a_{2}$

Pulley accelerating up at 2 m/s $^{2}$ : $a_{1} + a_{2} = 2 \times 2 = 4$

$\frac{T _{1} - 30}{3} + \frac{T _{1} - 60}{6} = 4$ , so $3 T_{1} = 144$ and $T_{1} = 48$ N

$T_{2} = 2 T_{1} = 96 = \frac{288}{x}$ , so $x = 3$

Subject:PhysicsTopic:NLMSubtopic:Simple Application of NLM

⏱ 2mℹ️ Source: QB
