Assume every block is stationary in the two figures, if $T_{1} = 10 N$ then $T_{2} =$ ?

Answer:

Solution:

In the first figure the block of mass $m$ hangs at rest, so the string tension is $T_{1} = m g$ .

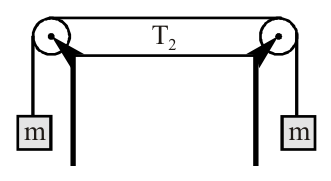

In the second figure each block of mass $m$ hangs at rest on its own side, so the tension is $T_{2} = m g$ as well.

So $T_{2} = T_{1} = 10 N$ .
