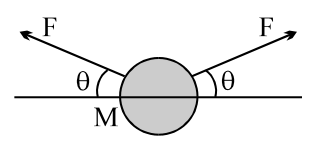

Two trucks pull on either end of a rope, each with a force of 10,000 N. In the centre of the rope, a ball of mass 20 kg is hanging. The angle $θ$ that the rope makes with the horizontal is,

Options:

Answer:

Solution:

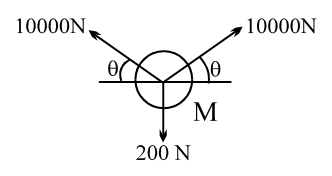

$∴ 2 \times 10000 \times sin θ = 200 ∴ sin θ = 1/100 ∴ θ \approx (1/100) rad = (\frac{1}{100} \times \frac{180}{3.14})^{\circ} = 0.5 6^{\circ}$
