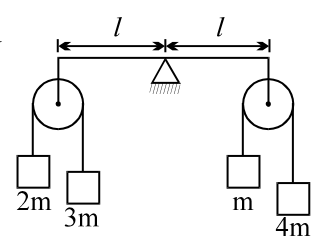

In the balance machine shown in the figure, which arm will move downward after the system is released (assuming string and the pulley to be ideal)

Answer:

Solution:

Left side: $T_{1} - 2 m g = 2 m \cdot \frac{a}{1} with a = \frac{g}{5} \Rightarrow T_{1} = \frac{12 m g}{5}$

Right side: $T_{2} - m g = m \cdot \frac{3 g}{5} \Rightarrow T_{2} = \frac{8 m g}{5}$

Since $T_{1} > T_{2}$ , the left arm is pulled down harder, so the left arm moves downward. Answer: (A).
