Physics - NLM Question with Solution | TestHub

PhysicsNLMFrictionMedium2 minPYQ_2021
PhysicsMediumsingle choice

An inclined plane making an angle of 30° with the horizontal is placed in a uniform horizontal electric field 200NC as shown in the figure. A body of mass 1 kg and charge 5 mC is allowed to slide down from rest at a height of 1 m. If the coefficient of friction is 0.2, find the time taken by the body to reach the bottom.
g=9.8 m s-2; sin30°=12; cos30°=32

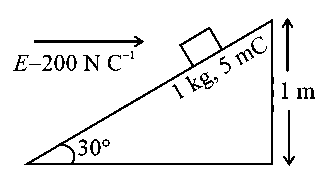

Question diagram: An inclined plane making an angle of 30 ° with the horizonta

Options:

Answer:
B
Solution:

here N=9.8cos30+1sin309 N

soa=9.8sin30-1cos30-μN1

a=2.233 m s-2

By S=ut+12at2

=122.233t2

sin30°

t1.3 sec

Stream:JEESubject:PhysicsTopic:NLMSubtopic:Friction
2mℹ️ Source: PYQ_2021
