Physics - Magnetism Question with Solution | TestHub

PhysicsMagnetismBiot-savart's & Ampere's Circuital lawEasy2 minPYQ_2020

PhysicsEasysingle choice

A very long straight conducting wire, lying along the $z$ -axis, carries a current of $2 A$ . The integral $\int \vec{B} . d \vec{ℓ}$ is computed along the straight line $PQ$ , where $P$ has the coordinates $(2 cm, 0, 0)$ and $Q$ has the coordinates $(2 cm, 2 cm, 0)$ . The integral has the magnitude (in $T m$ )

Options:

Answer:

Solution:

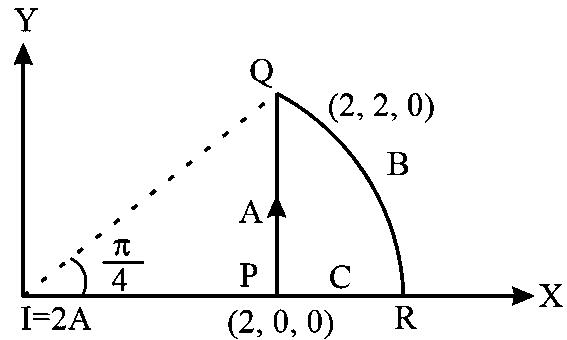

$\int_{PAQ} \vec{B} . d \vec{ℓ} = \int_{RBQ} \vec{B} . d \vec{ℓ} (\int_{PCR} \vec{B} . d \vec{ℓ} = 0)$

$= (\frac{μ_{0} I}{2 πR}) (\frac{π}{4} R)$

$= \frac{(4 π \times 1 0^{- 7}) (2)}{8} = π \times 1 0^{- 7} T m$

Subject:PhysicsTopic:MagnetismSubtopic:Biot-savart's & Ampere's Circuital law

⏱ 2mℹ️ Source: PYQ_2020
