PhysicsKinematicsMiscellaneousMedium2 minQB

PhysicsMediumsingle choice

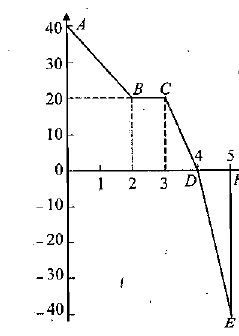

In the velocity-time graph of a body shown in the figure, the distance and displacement travelled by the body in $5$ seconds, in metres, are:

Options:

Answer:

Solution:

Areas: I = $\frac{1}{2} (2) (20) = 20$ , II = $(3) (20) = 60$ , III = $\frac{1}{2} (1) (20) = 10$ , IV = $\frac{1}{2} (1) (40) = 20$ (below the axis). Distance = $20 + 60 + 10 + 20 = 110$ m; displacement = $(20 + 60 + 10) - 20 = 70$ m. Option B.

Stream:JEESubject:PhysicsTopic:KinematicsSubtopic:Miscellaneous

⏱ 2mℹ️ Source: QB
