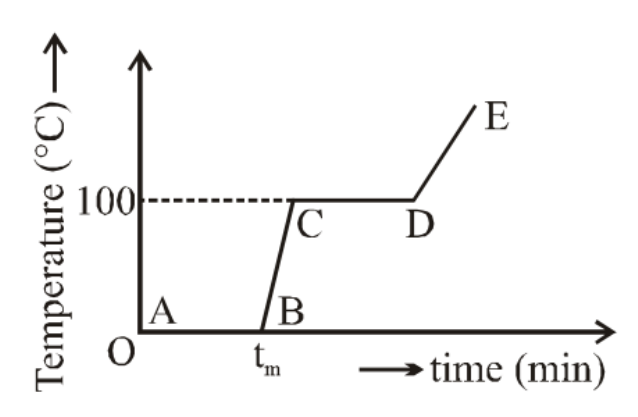

Refer to the plot of temperature versus time (figure) showing the changes in the state of ice on heating (not to scale). Which of the following is correct?
Options:(select one or more)
Answer:
A, D
Solution:
A: AB is the melting region, with ice and water together.
B: at B, all ice has become water; boiling has not begun.
C: BC warms water to its maximum liquid temperature at C. It has not all become steam.
D: CD converts water to steam at the boiling point, with both phases present.
Thus A and D are correct.
