Physics - Geometrical Optics Question with Solution | TestHub
PhysicsGeometrical OpticsRefraction at curved surface/LensMedium2 minQB
PhysicsMediummultiple choice

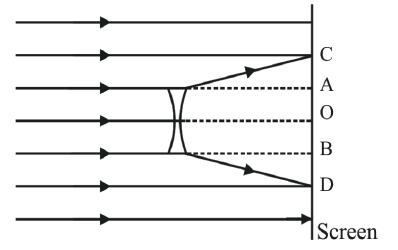

A concave lens is placed in the path of a uniform parallel beam of light falling on a screen as shown. Then :-
Options:(select one or more)
Answer:
B, D
Solution:
The concave lens diverges the parallel beam outward, away from the axis.
Rays that would have reached region AB are spread toward C and D, so region AB gets less light - (B) correct.
The deflected rays add to the light in regions AC and BD, so the intensity there increases - (D) correct.
Stream:JEESubject:PhysicsTopic:Geometrical OpticsSubtopic:Refraction at curved surface/Lens
⏱ 2mℹ️ Source: QB
