PhysicsGeometrical OpticsReflection at plane surfaceMedium2 minPYQ_2023
PhysicsMediumsingle choice

An object is placed at a distance of12 cmin front of a plane mirror. The virtual and erect image is formed by the mirror. Now the mirror is moved by4 cmtowards the stationary object. The distance by which the position of image would be shifted, will be

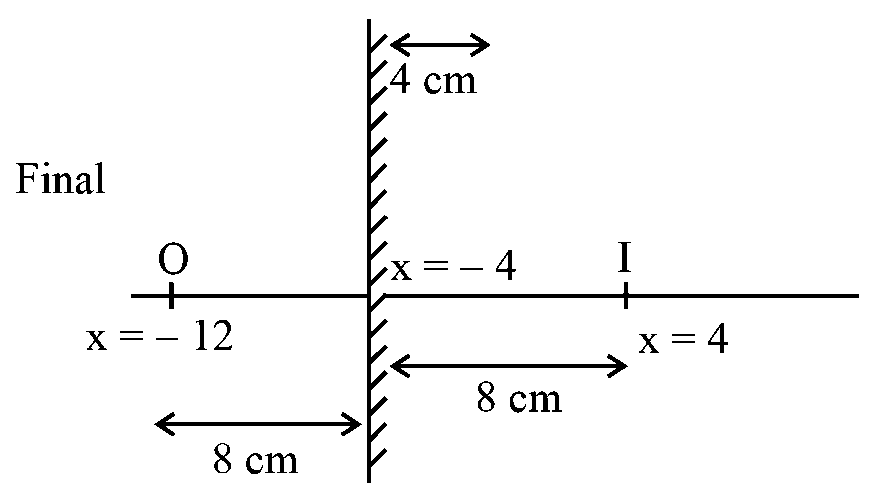

Question diagram: An object is placed at a distance of 12 cm in front of a pla

Options:

Answer:
B
Solution:

When an object is placed in front of a plane mirror, object distance is equal to the image distance. In the first case, the image distance will be 12 cm from the mirror. In the next case, as the mirror is moved towards the object, the object distance becomes 8 cm. Hence, image distance will also be 8 cm.

Stream:JEESubject:PhysicsTopic:Geometrical OpticsSubtopic:Reflection at plane surface
2mℹ️ Source: PYQ_2023
