According to the thin lens formula

$\frac{1}{f}=\frac{1}{v}-\frac{1}{u}$

Here,$\mathrm{u} = -2.4 \mathrm{m} = - 240 \mathrm{cm}, \mathrm{v} = 12 \mathrm{cm}$

$\therefore$$\frac{1}{f}=\frac{1}{12}-\frac{1}{\left(-240\right)}=\frac{1}{12}+\frac{1}{240}$

$\frac{1}{f}=\frac{21}{240}\text{ or }f=\frac{240}{21} \text{cm}$

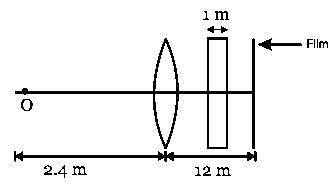

When a glass plate is interposed between lens and film, so shift produced by it will be

Shift$=\text{t }\left(1-\frac{1}{\mu }\right)=1\left(1-\frac{1}{1\text{.}5}\right)=1\left(1-\frac{2}{3}\right)=\frac{1}{3} \text{cm}$

To get an image at the film, the lens should form an image at a distance

$v{}^{\text{'}}=12-\frac{1}{3}=\frac{35}{3} \text{cm}$

Again using lens formula

$\therefore$$\frac{21}{240}=\frac{3}{35}-\frac{1}{u^{\prime }}\text{ or }\frac{1}{u^{\prime }}=\frac{3}{35}-\frac{21}{240}=\frac{1}{5}\left[\frac{3}{7}-\frac{21}{48}\right]$

$\frac{1}{u^{\prime }}=\frac{1}{5}\left[\frac{144-147}{336}\right]\text{ or }\frac{1}{u^{\prime }}=-\frac{3}{1680}$

$u{}^{\text{'}}=-56\mathrm{0 }\text{cm}=-5\text{.}6 \text{m}$

$\left|u{}^{\text{'}}\right|=5\text{.}6 \text{m}$
