PhysicsCurrent ElectricityEquivalent ResistanceEasy2 minPYQ_2022

PhysicsEasysingle choice

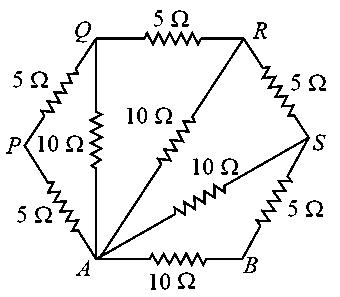

Find the equivalent resistance between point $A$ and $B$

Answer:

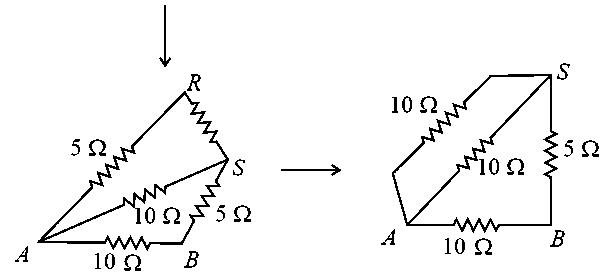

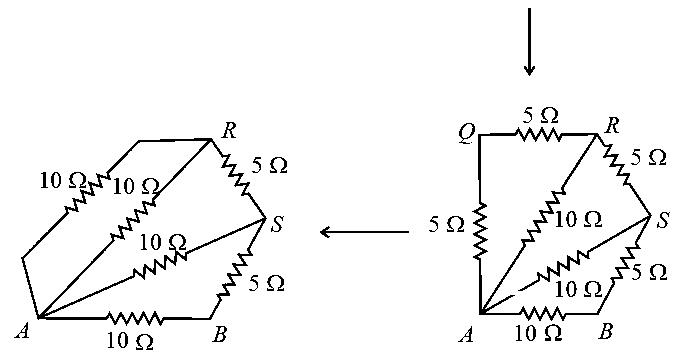

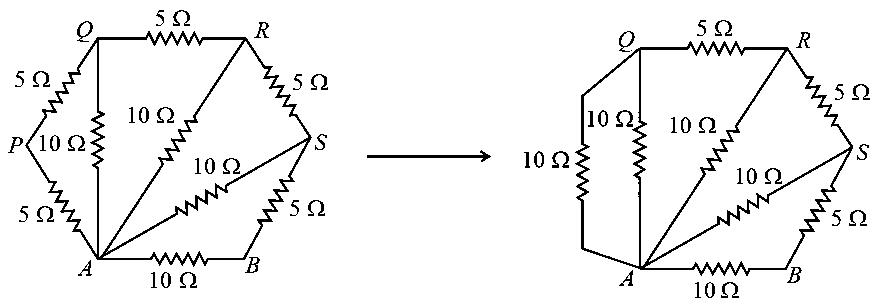

Solution:

Therefore, $R_{A B} = \frac{(R_{A S} + 5) \times 10}{(R_{A S} + 5) + 10} = \frac{(5 + 5) \times 10}{(5 + 5) + 10} = 5 Ω$

Stream:JEESubject:PhysicsTopic:Current ElectricitySubtopic:Equivalent Resistance

⏱ 2mℹ️ Source: PYQ_2022
