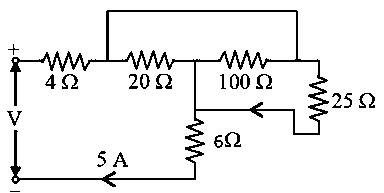

After redrawing the given circuit$100 \mathrm{\Omega }, 20 \mathrm{\Omega }$and$25 \mathrm{\Omega }$are in parallel combination.

${\mathrm{R}}_{\mathrm{e}\mathrm{q}}=20\mathrm{ }\mathrm{\Omega }$

$5\mathrm{A}=\frac{\mathrm{V}}{{\mathrm{R}}_{\mathrm{e}\mathrm{q}}}\mathrm{ }\Rightarrow \mathrm{ }\mathrm{V}=100\mathrm{ }\mathrm{V}$
