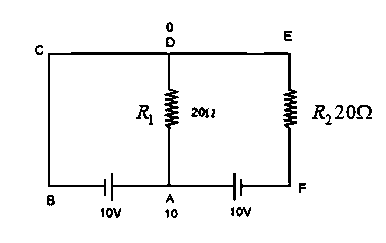

In the given circuit the cells have zero internal resistance. The currents (in amperes) passing through resistance $R_{1}$ and $R_{2}$ respectively, are:

Options:

Answer:

Solution:

Assume $V_{F}$ as $0$

$a s V_{E} = V_{B}$

$\Rightarrow$ Current in $R_{2}$ is zero

$V_{A} - V_{D} = 10 V$

$\Rightarrow I = \frac{10}{20} = \frac{1}{2} A$ from $A$ to $D$
