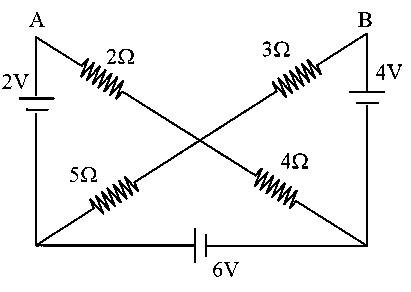

Potential difference between points $A$ and $B$ (i.e. $V_{A} - V_{B}$ ) is

Answer:

Solution:

Apply Kirchhoff''s Voltage Law,

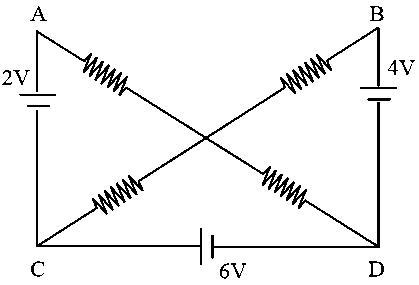

Along wire $A C D B$
$V_{A} - 2 - 6 + 4 = V_{B}$
$V_{A} - V_{B} = 4 V$
