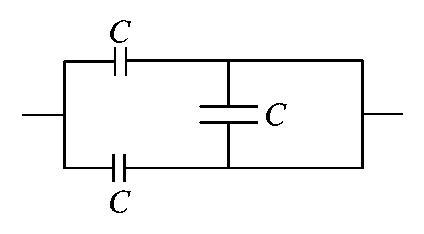

The equivalent capacitance of the combination shown in the figure is:

NEET 2021

Answer:

Solution:

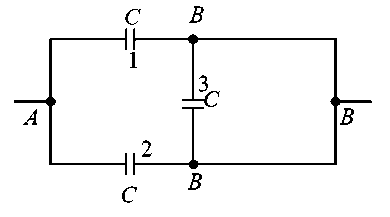

Redrawing the circuit between $A & B$ ,

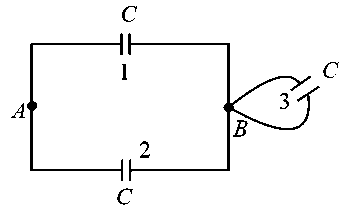

Capacitor $3$ can be eliminated

Capacitor $1$ & $2$ are in parallel.

$C_{A B} = C_{1} + C_{2}$

$= C + C$

$= 2 C$
