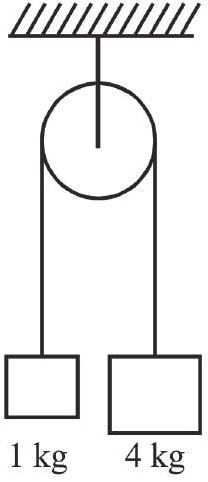

In figure shown pulley and strings are massless and frictionless then what will be tension (in N) in the string? $(g = 10 m / sec^{2})$

diagram

Answer:

Solution:

Atwood machine: $T = \frac{2 m _{1} m _{2}}{m _{1} + m _{2}} g = \frac{2 \times 1 \times 4}{1 + 4} \times 10 = 16 N$ .
