PhysicsNLMFBD & EquilibriumMedium3 minQB

PhysicsMediumsingle choice

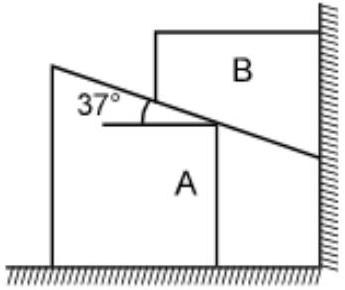

Two blocks A and B are placed as shown in figure. There is no friction anywhere then F.B.D. of block A is :-

diagram

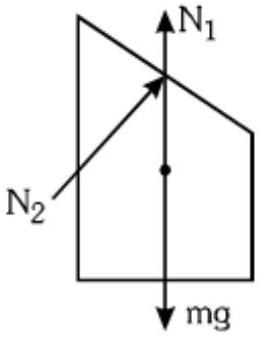

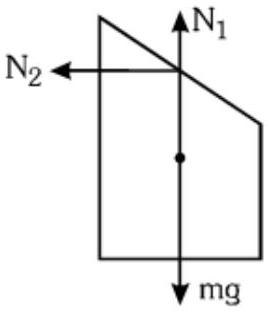

Answer:

Solution:

On block A: $m g$ downward, $N_{1}$ from the ground upward, and $N_{2}$ from B perpendicular to the 37° contact surface, pushing A down-left.

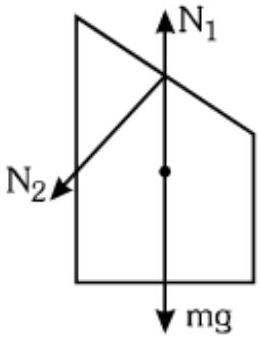

Only figure (D) shows all three correctly - (D).

Stream:JEESubject:PhysicsTopic:NLMSubtopic:FBD & Equilibrium

⏱ 3mℹ️ Source: QB
