Chemistry - Atomic Structure Question with Solution | TestHub

ChemistryAtomic StructureSchrödinger's EquationHard2 minQB

ChemistryHardsingle choice

Match the two columns shown. Identify the correct match for entry (2), $n = 2, l = 1, m = 0$ .

Column I	Column II
(1) $n = 3, l = 2, m = 0$	(P)
(2) $n = 2, l = 1, m = 0$	(Q)
(3) $n = 1, l = 0, m = 0$	(R)
(4) $n = 3, l = 1, m = 0$	(S)
	(T) Radial nodes = 0
	(U) Angular nodes = 1

Options:

Answer:

Solution:

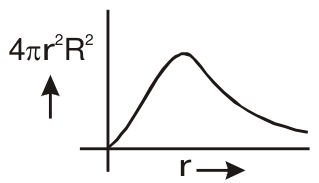

Row (2), n=2,l=1,m=0, is 2p. Radial nodes=n-l-1=0, T; angular nodes=l=1, U. Its radial distribution starts at zero, has one maximum and no radial node, graph P. Thus P,T,U, option B.

Stream:JEESubject:ChemistryTopic:Atomic StructureSubtopic:Schrödinger's Equation
