PhysicsSHMOscillations and SHMMedium2 min

PhysicsMediumsingle choice

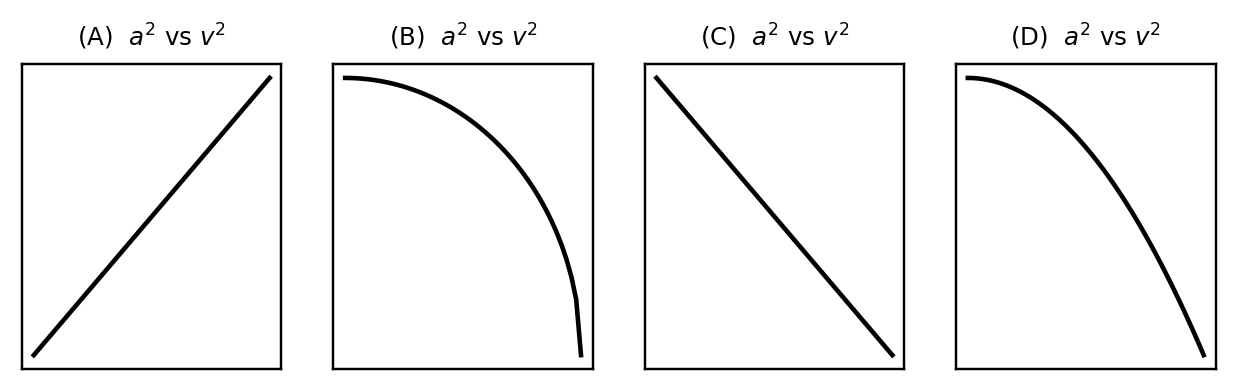

A particle is in linear SHM. If its acceleration and corresponding velocity are $a$ and $v$ , the graph relating $a^{2}$ and $v^{2}$ is (options in the figure):

Options:

Answer:

Solution:

$v^{2} = ω^{2} A^{2} - ω^{2} x^{2}$ and $a^{2} = ω^{4} x^{2}$ , so $a^{2} = ω^{2} (ω^{2} A^{2} - v^{2})$ is a straight line with negative slope: option (C).

Subject:PhysicsTopic:SHMSubtopic:Oscillations and SHM

⏱ 2m
