PhysicsHeat & ThermoKTGMedium2 minQB
PhysicsMediumsingle choice

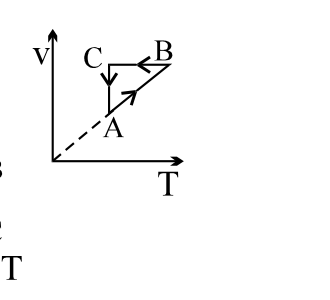

An ideal gas undergoes a thermodynamics cycle as shown in figure. Which of the following graphs represents the same cycle?
Options:
Answer:
A
Solution:
Reading the cycle from the V--T diagram and converting each leg to the P--T plane: the isobaric leg maps to a horizontal line, the isochoric leg to a line through the origin, and the isothermal leg to a vertical line. Only graph (A) matches.
Stream:JEESubject:PhysicsTopic:Heat & ThermoSubtopic:KTG
⏱ 2mℹ️ Source: QB
