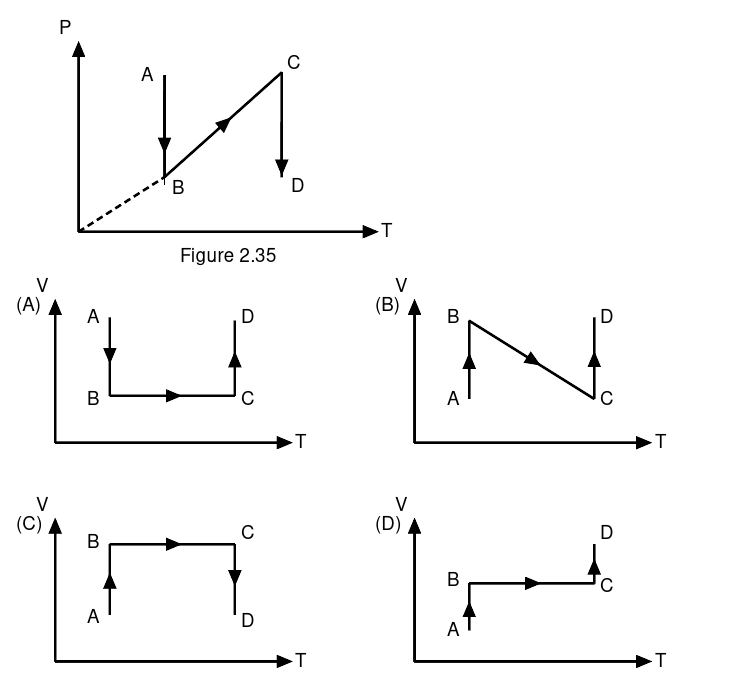

The P-T diagram of Figure 2.35 is shown (A to B and C to D are vertical, B to C is a straight line that would pass through the origin). Choose the corresponding V-T diagram from the four diagrams (A) to (D) drawn in the figure.
Options:
Answer:
D
Solution:
A to B is isothermal with falling pressure, so V rises along a vertical line. B to C is a line through the origin, so isochoric and horizontal on the V-T diagram. C to D is isothermal with falling pressure, so V rises vertically again. This is diagram (D). D.
Subject:PhysicsTopic:Heat & ThermoSubtopic:Kinetic Theory of Gases and Gas Laws
