PhysicsMediumsingle choice

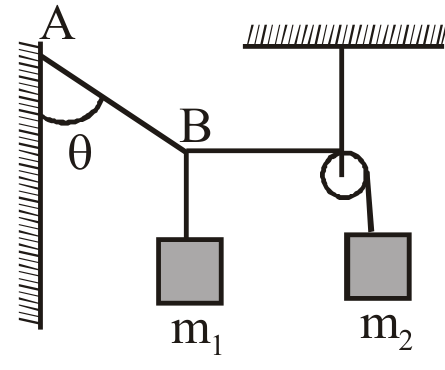

For figure, $m_{1} = 300 kg$ and $m_{2} = 400 kg$ and system is at rest. Pulleys and rope are ideal.

Answer:

Solution:

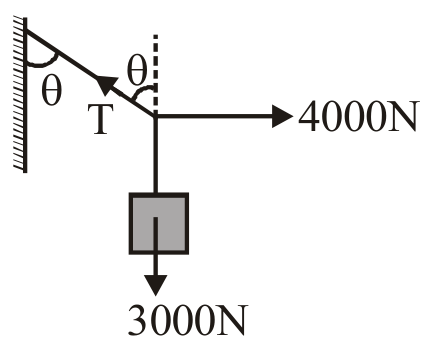

$T cos θ = 3000 T sin = 4000 tan q = \frac{4}{3} θ = 5 3^{\circ} T = 5000 N$
