Physics - Heat & Thermo Question with Solution | TestHub

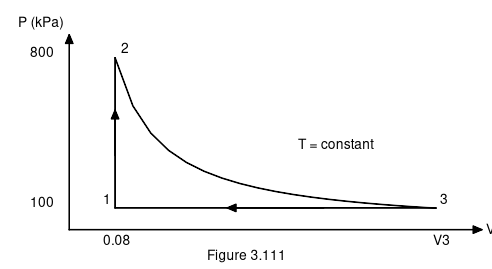

For the cycle shown in figure 3.111, find the net heat transfer if 100 g of air is contained in a piston-cylinder arrangement. For air $M=20$. (As read from the figure: 1 is at $\left(0.08{\text{m}}^3,100\text{kPa}\right)$, 2 at $\left(0.08{\text{m}}^3,800\text{kPa}\right)$, 3 at $\left(V_3,100\text{kPa}\right)$; 1-2 vertical, 2-3 isothermal, 3-1 isobaric.)
