PhysicsHeat & ThermoHeat TransferMedium2 min

PhysicsMediumsingle choice

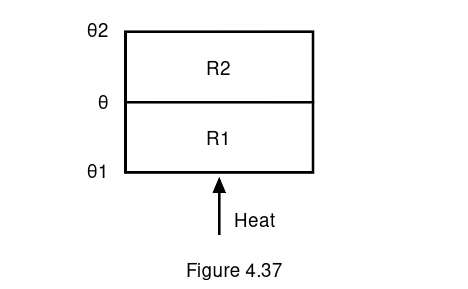

Consider two insulating sheets with thermal resistances $R_{1}$ and $R_{2}$ as shown in Figure 4.37. The temperature $θ$ is:

Options:

Answer:

Solution:

The heat current is the same: $\frac{θ _{1} - θ}{R _{1}} = \frac{θ - θ _{2}}{R _{2}}$ . Solving, $θ = \frac{θ _{1} R _{2} + θ _{2} R _{1}}{R _{1} + R _{2}}$ . D.

Subject:PhysicsTopic:Heat & ThermoSubtopic:Heat Transfer

⏱ 2m
