A transverse sinusoidal wave moves along a string in the positive x direction. In figure (I) the displacement of particle at P as a function of time is given and in figure (II), at a particular time t

Question

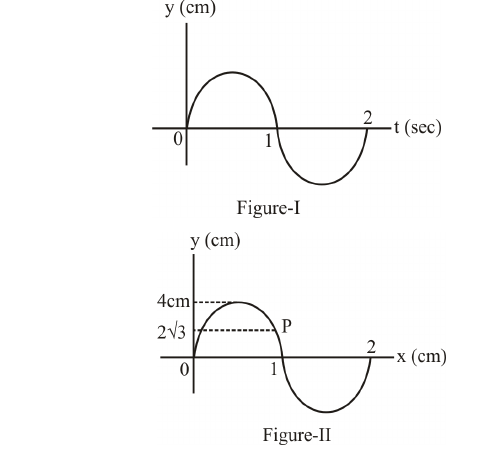

A transverse sinusoidal wave moves along a string in the positive x direction. In figure (I) the displacement of particle at P as a function of time is given and in figure (II), at a particular time t , the snapshot of the wave is shown. The wave velocity (cm/s) and velocity of particle at P (cm/s) will be:

TestHub · Accepted Answer

2 λ ​ = 1 ⇒ λ = 2 v = k ω ​ = T λ ​ = 2 2 ​ = 1 cm/s v p ​ = ω A 2 − x 2 ​ = T 2 π ​ 4 − ( 3 ​ ) 2 ​ = 2 2 π ​ 16 − 12 ​ ⋅ 2 1 ​ = 2 π cm/s

Physics - Wave on String Question with Solution | TestHub

Options:
